Auto Ranging r AC/DC Voltage Current Ohm Capacitance Frequency Diode Transistor Audible Continuity
Features of Handheld Digital Multimeter
- Back Light
- Hold button
- Fuse protection: F 250mA/ 25V
- Display: LCD, 1999 counts, updates 2-3/sec
- Overrange Indication: Only figure “1” on the display
| Specifications | Range | Accuracy |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+2) |
| 600V | ±(0.8%+2) |
| AC Voltage | 200V/600V | ±(1.2%+10) |
| DC Current | 20µA | ±(1.2%+10) |
| 200µA/2mA | ±(1.0%+3) |
| 20mA | ±(1.0%+5) |
| 200mA | ±(1.5%+5) |
| 10A | ±(3.0%+10) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ | ±(0.8%+2) |
| 2MΩ | ±(1.0%+5) |
| Features |
| Display:2000 counts |
| Data Hold |
| Diode Test |
| hEF Test |
| Continuity |
| General |
| Power Supply | DC9V 6F22 battery |
| Net weight | 197g (battery is not included) |
| Gross weight | 339g |
| Size | 145mm*74mm*44mm |
| Safety Rating | EN61010-1, EN61010-1-033, EN61326, CAT. Ⅲ 600V |
Product Description of Handheld Digital Multimeter
The instrument of this series is a small hand-held 3 1/2 digital multimeter featuring stable, highly reliable and anti-drop performance. It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure AC and DC voltage, DC current, resistance, diodes, and for in-circuit continuity test.
- This digital capacitance meter is pocket, convenient operation,accurate numerical reading, low-consumption, driven by battery,and showing numbers in a big LCD
- Press the backlight button to turn on the blacklights which will last for 5 sseconds, to turn it on again, hit the button as needed
- Data hold function low power indication, and auto power off
- Overload protection:200mV, Range:600V DC or rms
- 3 1/2digital, 15mm height, 7 sections LCDdisplay
- High quality and easy-to-use.
- Mini and easy to carry
ATTACHMENTS
INSTRUCTION MANNUAL: 1
PROBE: ONE PAIR
PACKAGE: ONE PIECE
9V BATTERY NEDA 1604 6F22: ONE PROVIDED(IN THE MULTI METER)

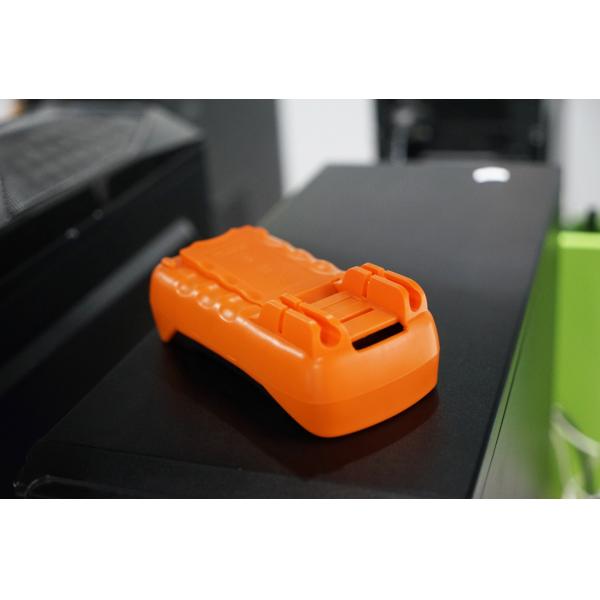

Detailed Images of Handheld Digital Multimeter
